Not sure if I posted the first group of photos on here before or not, but the semi-finished product is also included in this post towards the end.
A while back about 3 of us were out at this location to complete the prewiring prior to the walls going up. This is a residential install including whole home audio, intercom, doorphone, IP cameras, telephone wiring, etc..
 |

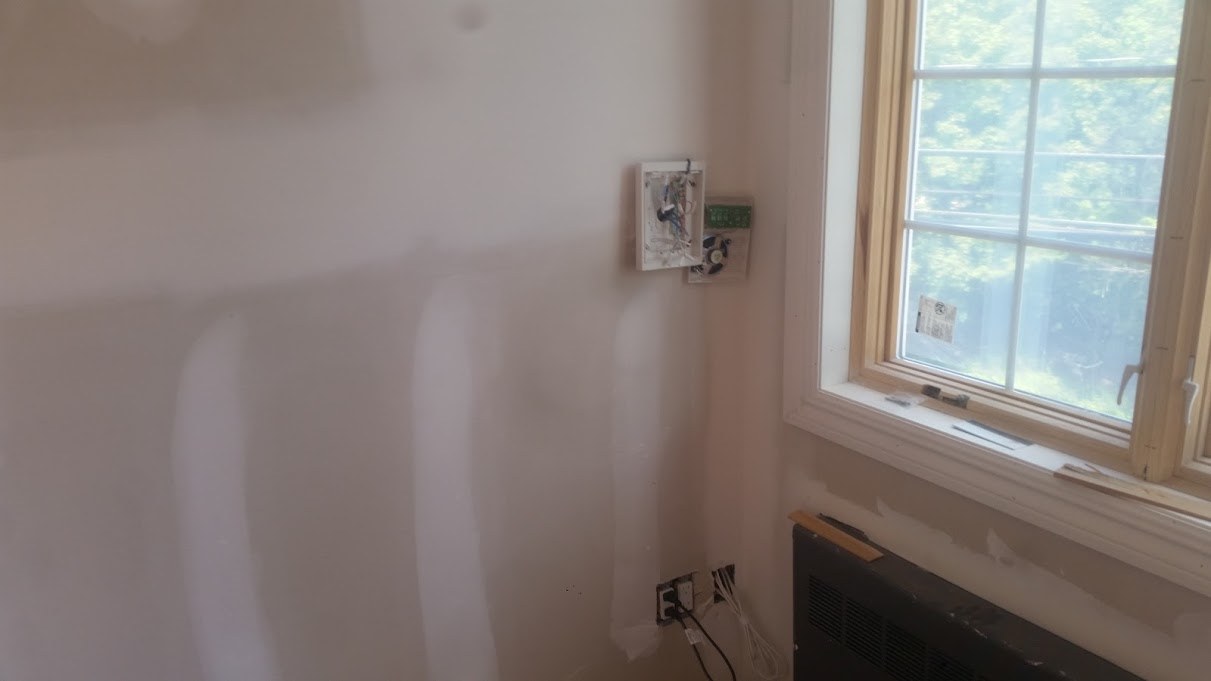

| Volume control and slave intercom base |
After the walls were finally installed myself and one other tech (different from the first crew) came back to install all of the speakers, intercoms, volume controls, etc.
 |

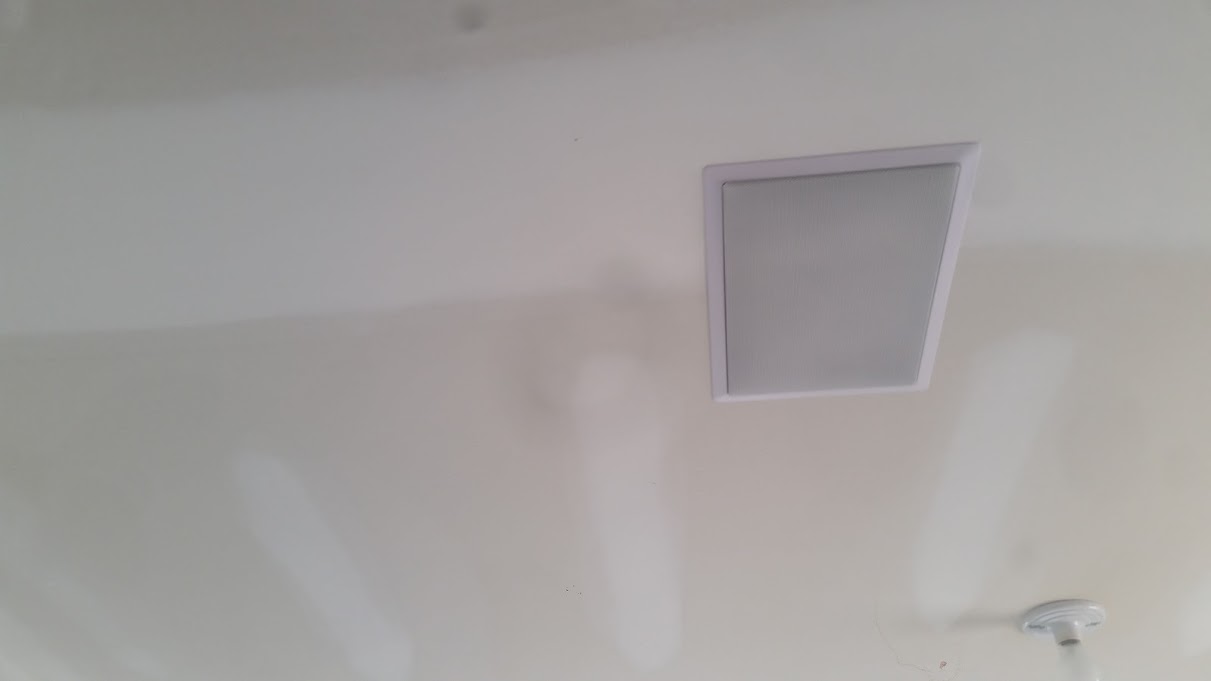

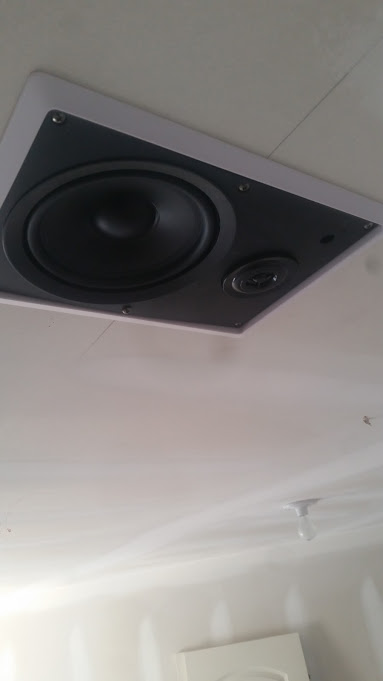

| In ceiling speaker |
Once all of the hardware was installed I returned alone to complete any hardware installation, as well as work on setting up and configuring everything at the "network closet"
 |
In ceiling speaker,

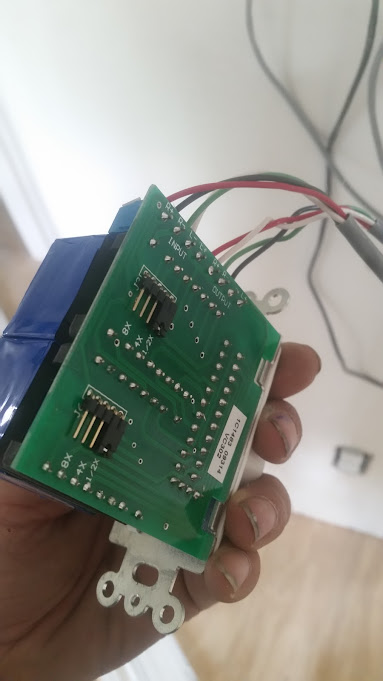

volume control,
slave intercom base |
After everything was connected up, I returned with the tech who assisted me with installing and mounting all of the hardware to test all of the speakers and complete some finishing touches.
 |

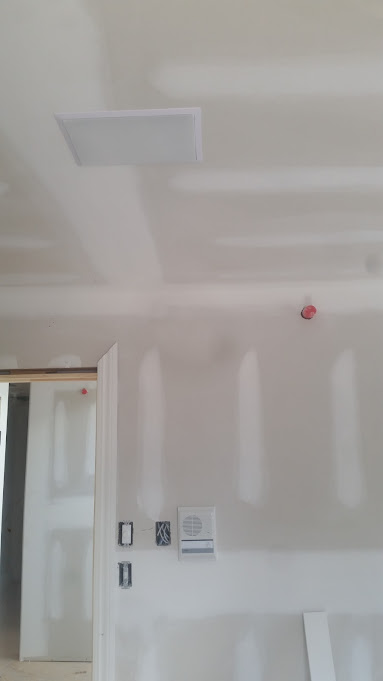

| In ceiling speaker |
This project is still not 100 percent complete, as there are additional monitors that need to be mounted, door strikes need to be installed, as well as all of the IP cameras that have been prewired.
 |
| In ceiling speaker |
 |

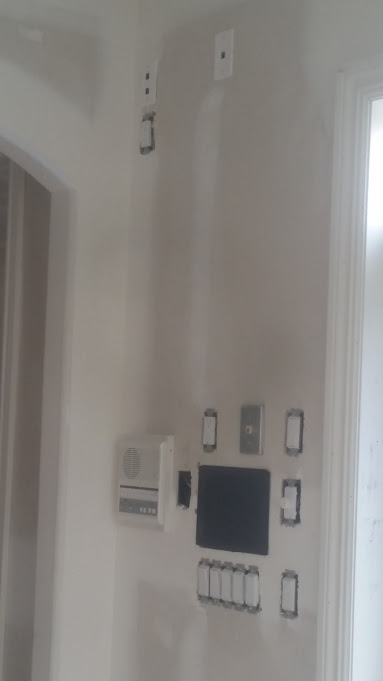

| All the wiring prior to cabinets being installed |
 |
| Network jack, and intercom base |
 |
| Wiring for electronic door latch |
 |
| In wall volume controls |
 |
| In wall volume controls |
 |

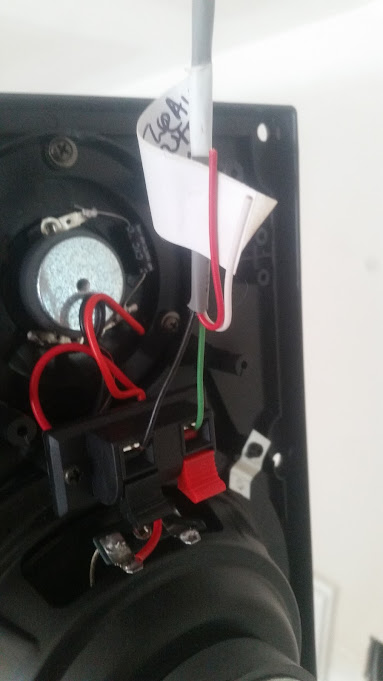

| Wiring in wall speaker |
 |

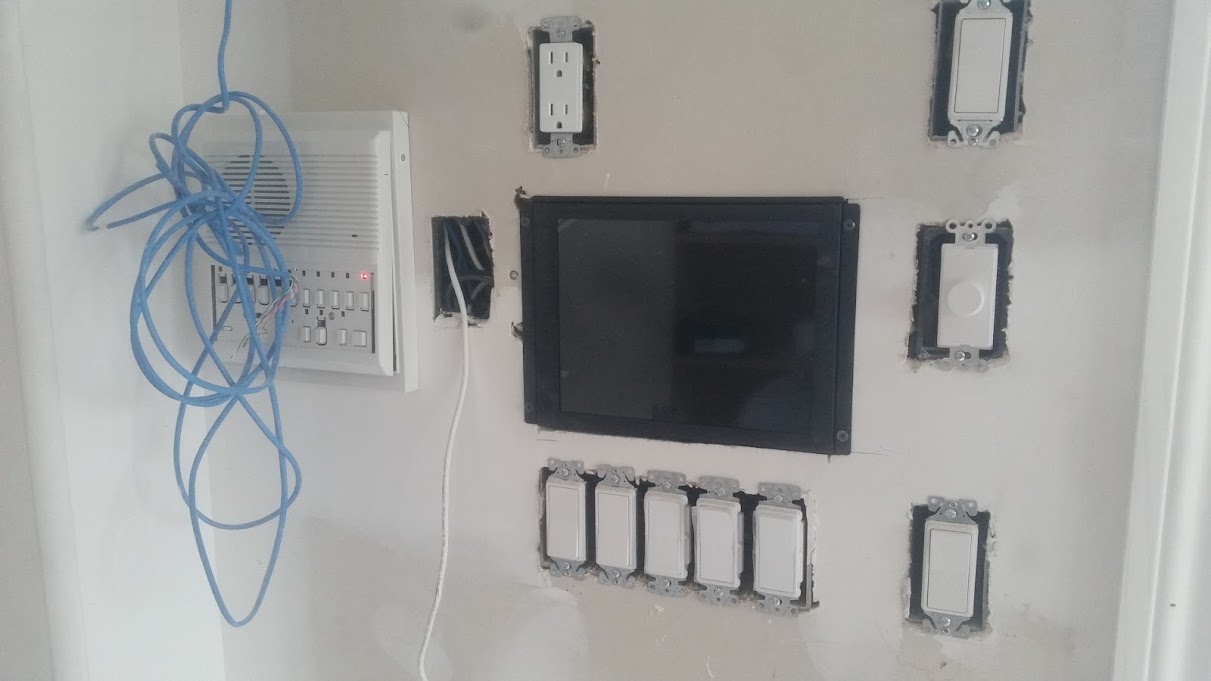

Master intercom base, monitor for front door camera,
analog telephone jack |
 |
Bluetooth amplifier,
Speaker splitter. |
 |
| Patch panel, BT amp, speaker splitter. |
 |
| Patch panel, speaker wires connected. |
 |

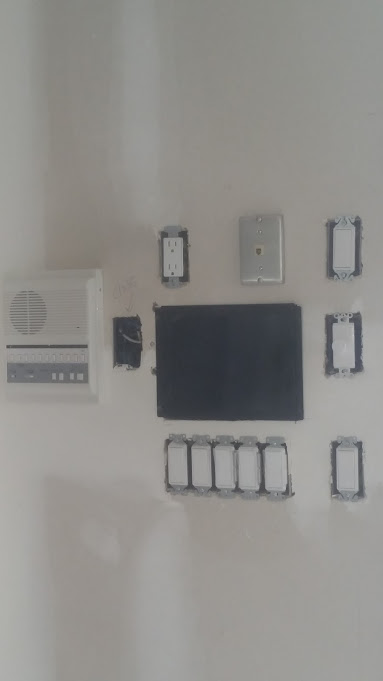

Master intercom base,
monitor for front door camera,
analog phone jack. |
 |
Same as above, but on top is
wiring for additional monitor. |
