The prewire for this job is located at this post HERE
Recently this office was prewired by myself, the prewire can be viewed in the link just above.
Recently this office was prewired by myself, the prewire can be viewed in the link just above.
 |

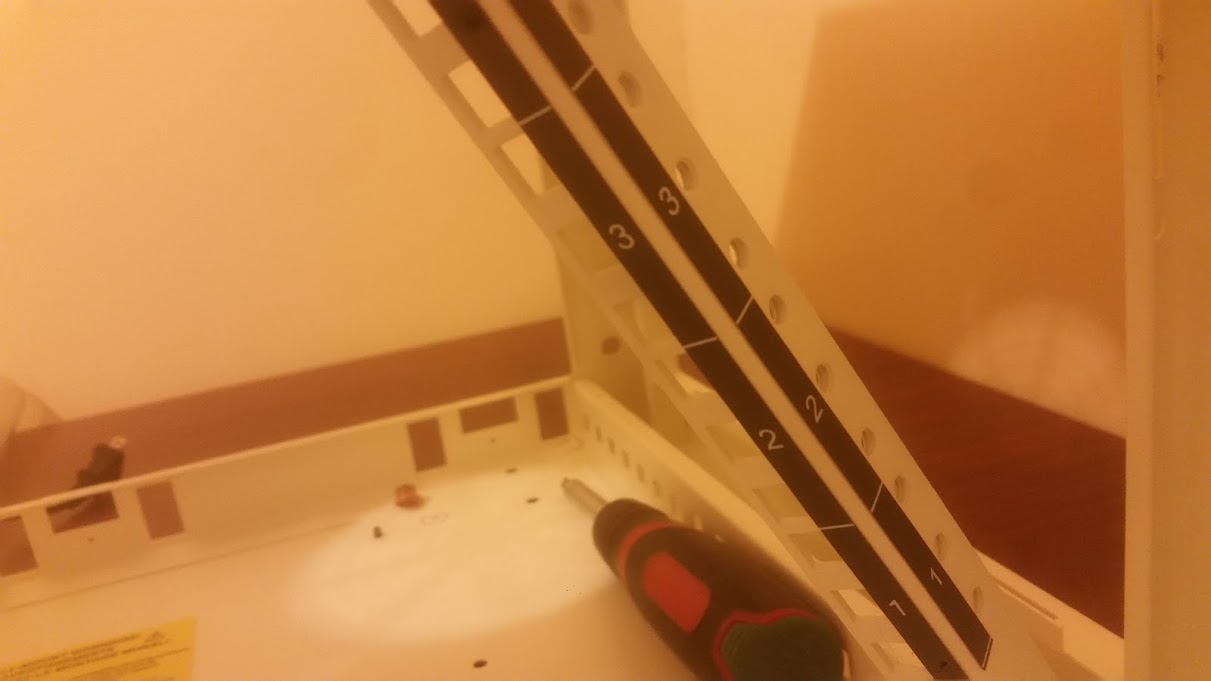

| This rack comes with rack rails that accommodate rack screws as well as nuts |
This rack was going to be located in one of the offices and visible, and the customer wanted an enclosed rack. I really didn't like how the enclosed rack that I have used in the past HERE looks.
 |

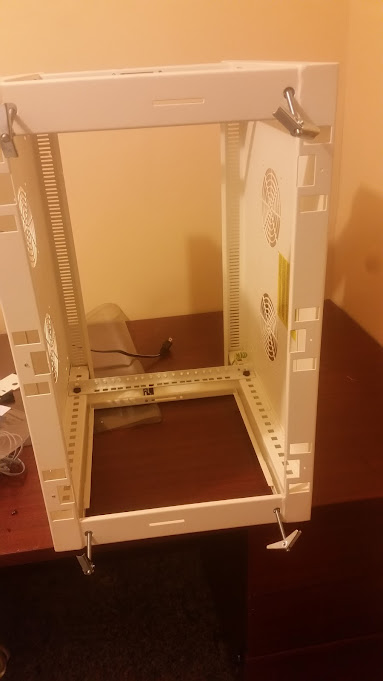

| Connecting toggle bolts to rack, |
I opted to get a vented white rack, unfortunately it was not available locally, and even with prime it took about a week to arrive from amazon. But the final product was well worth the wait.
 |
| Holes drilled out for toggle bolts. |
I even opted to color code the patch cords for Voice, Data (which I generally do), and also the IP cameras and monitors.
 |

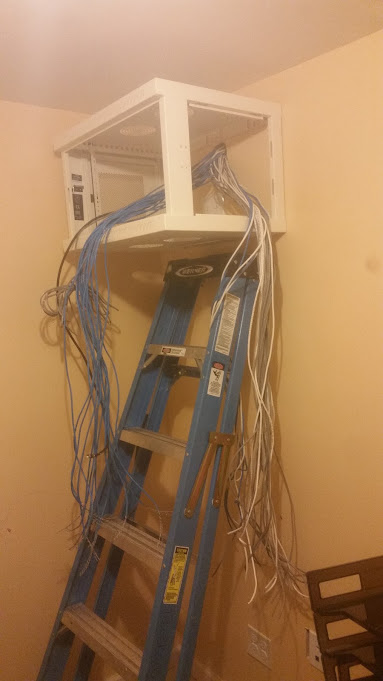

| Rack mounted to wall Voice and data jacks separated. |
Not only was the rack, and IP cameras installed, but we also installed multiple monitors, which we use a 4x1 HDMI splitter and HDMI over CAT5 baluns to get the signal from the NVR to the monitors.
 |

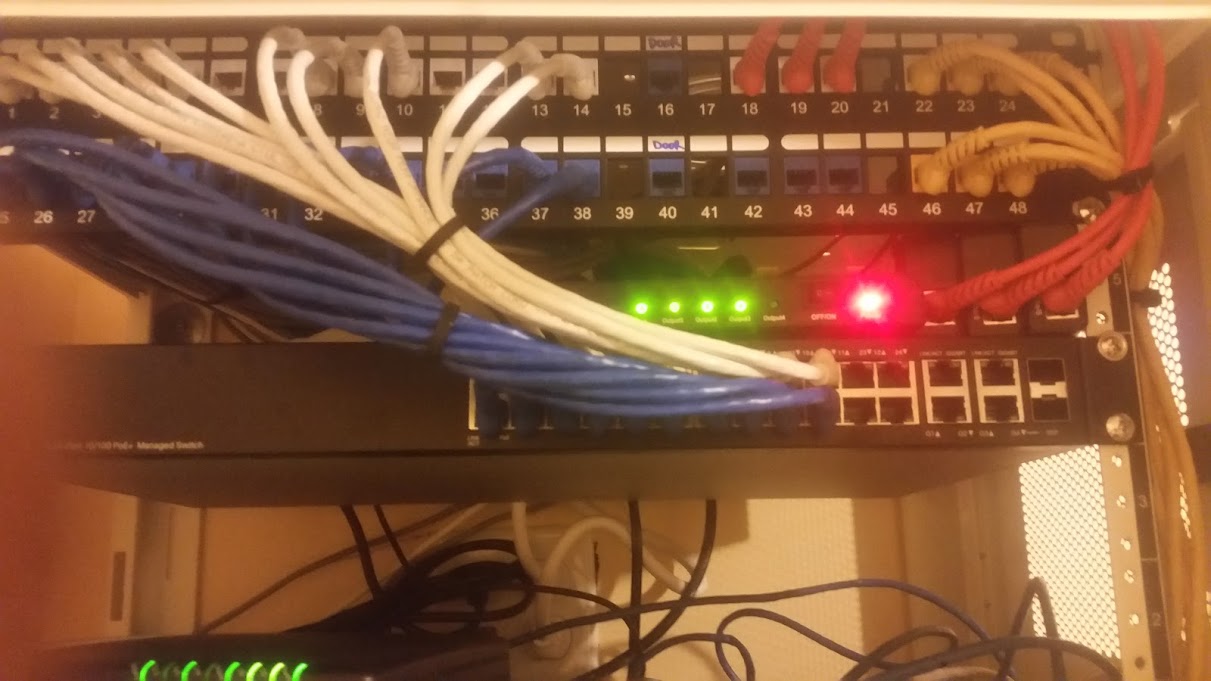

| Everything patched in |
 |

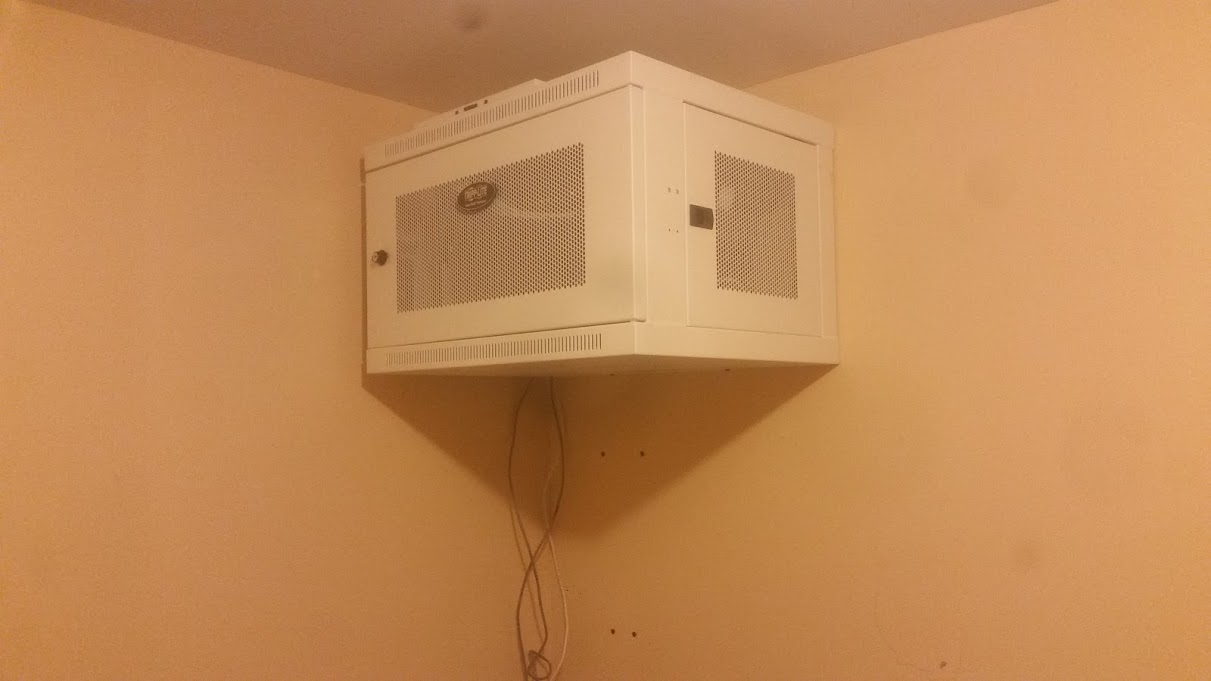

| Rack all closed up (hanging wires for Verizon Demarc) |
 |

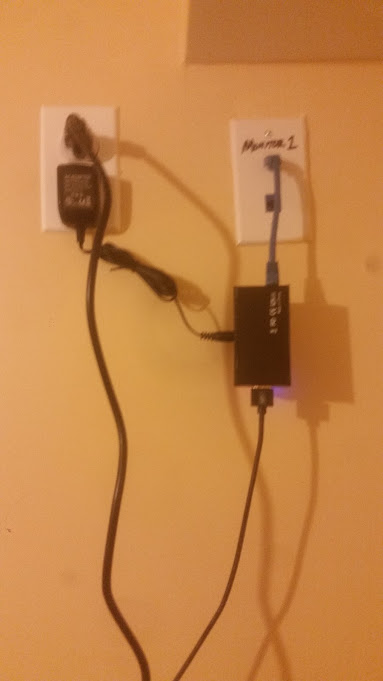

| HDMI over single CAT5 baluns connected to monitor (no photos after monitors mounted) |
 |
| HDMI over CAT5 |
 |
| Color coded patch cords: White: Voice Blue: Data Orange: HDMI over CAT5 (monitors) Yellow: IP cameras |
