So this customer had someone else run all of the wiring. I would probably have run all of the wiring to a single location in this room and installed everything on a single floor mounted rack, but since everything was already wired behind plywood walls (and not run in from the ceiling, so not sure how to pull back to reroute) I decided to install 4 wall mount 8u racks.
 |

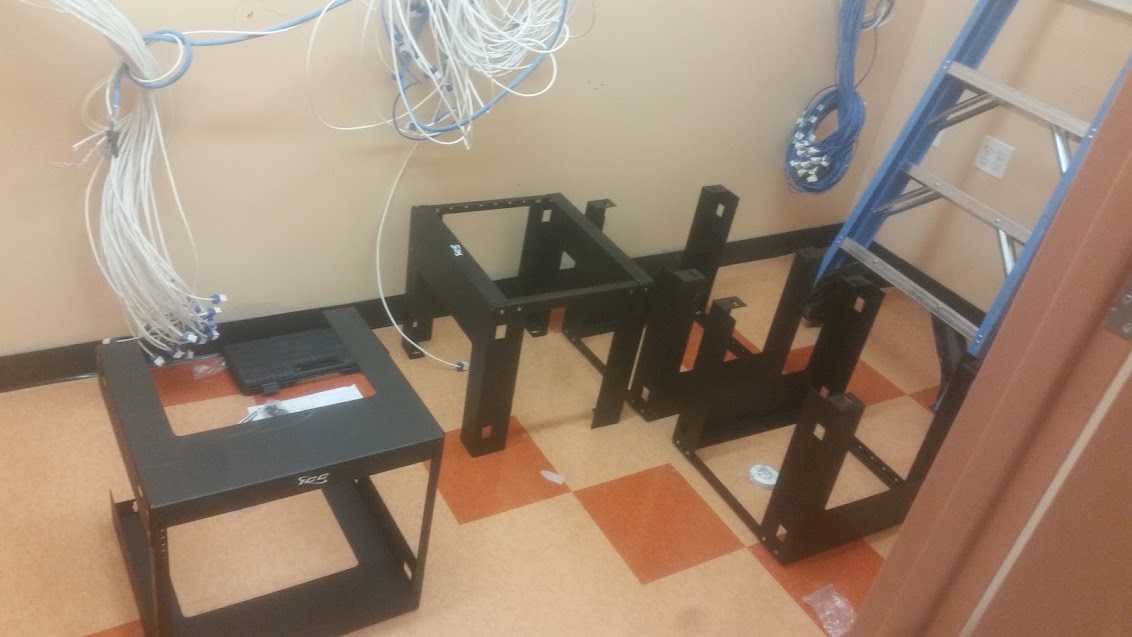

| Four racks ready to be mounted |
 |
| Ready to mount everything to walls |
 |

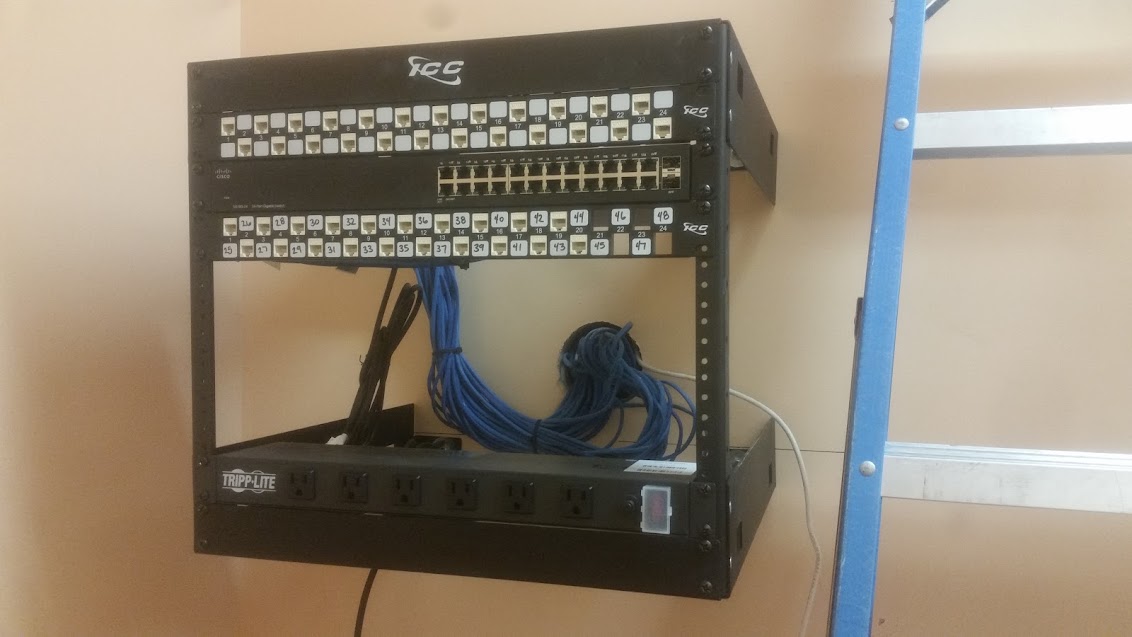

| One of the GB racks. |
 |
| All 4 racks mounted, almost finished wiring up |
 |

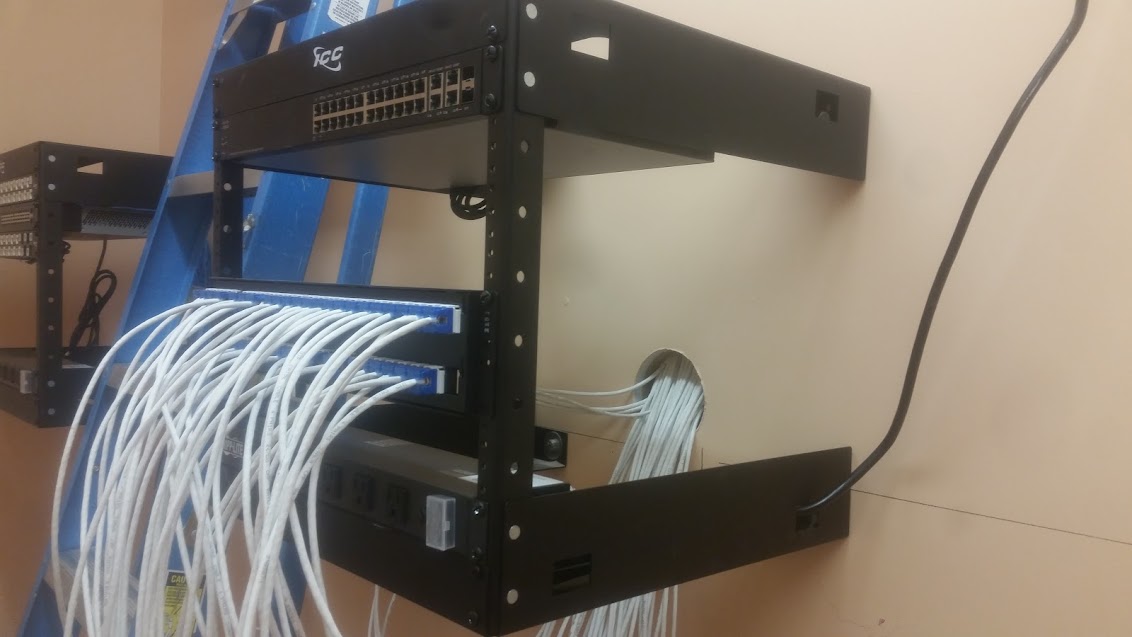

| One of the PoE racks |
 |
| Finishing up wiring HD jacks to patch panel. |
 |
| One of the GB racks. |
 |
| Panoramic view of all 4 racks. |
